Programmable PLC Vertical Flammability Chamber Burner To Specimen 19 Or 17mm

Name: Programmable PLC Vertical Flammability Chamber Burner To Specimen 19 Or 17mm
Brand: TESTEX
Price: 1 USD

Brand Name : TESTEX

Model Number : TF312

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C,D/A,T/T,Western Union,MoneyGram, In Cash

Supply Ability : 300 Set/Sets per Month

Delivery Time : 30 days

Packaging Details : Standard exporting wooden case

System and Display : Programmable PLC and touch screen controls Time

Display and accuracy : 0-999.9s, 0.1s

Ignition time : 12+/-2 s or 3+/-0.2 s

Burner size : Dia. 10mm / 11mm x barrel length 76+/-6mm

burner to specimen : 19 or 17 mm

Timing : PLC controlled

Standards : ASTM D6413, CALIF TB117, DOC-FF 3/71, FTMS 191-5903, CPAI 84

Power : 220 /110 V 50/60 Hz

Contact Now

Programmable PLC Vertical Flammability Chamber With Stainless Steel Flammability Chamber

Application

Vertical Flammability Chamber, for measuring the vertical flame spread of children’s sleepwear, fabrics (fabric burn test), and other textile materials or resilient filling materials used in upholstered furniture.

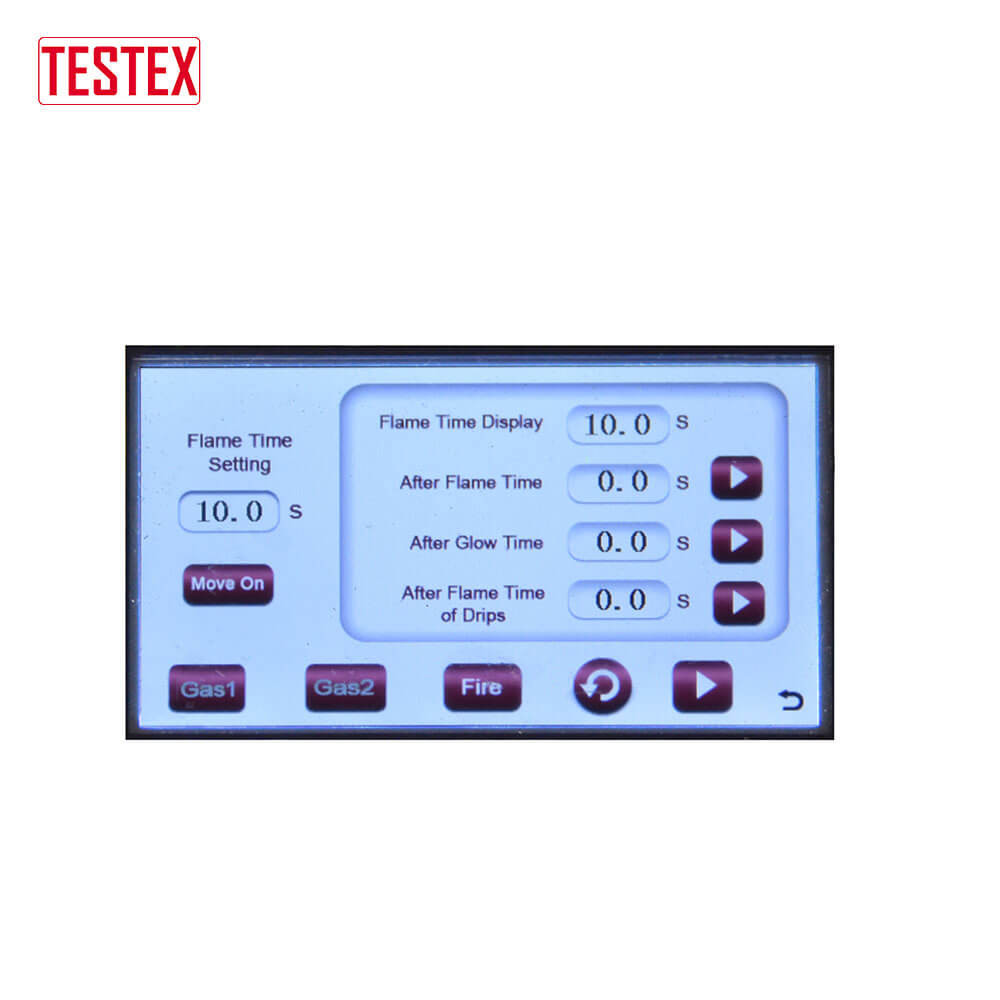

The burner ignites the specimen automatically, and ignition time is programmable; after-flame time and afterglow time are timed automatically and shown on the display. User-friendly design of the control panel, Touch screen is equipped to make the operation conveniently, the test results are displayed on the screen after test.

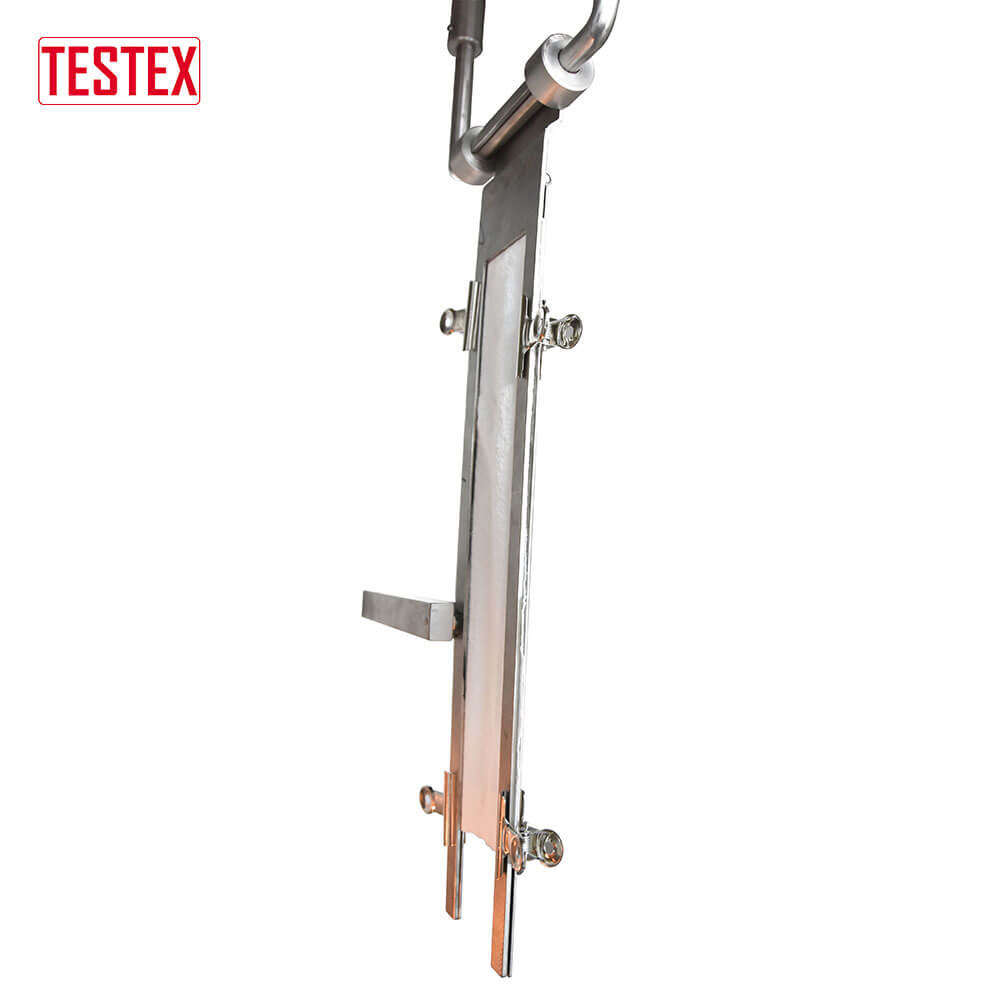

Comprises a draft free stainless-steel flammability chamber with observation window for easy test viewing. Specimen holders, burner and associated hardware are dependent on the test standard and must be specified.

Specifications

System and Display Programmable PLC and touch screen controls Time Display and accuracy 0-999.9s, 0.1s
Ignition time 12+/-2 s or 3+/-0.2 s
Burner size Dia. 10mm / 11mm x barrel length 76+/-6mm
burner to specimen 19 or 17 mm
Dimension of holder outside 442 x 76 / 442 x 89mm,
interior 356x51 mm
Timing PLC controlled

Optional Standards

16CFR Parts1615/1616

Standards	ASTM D6413, CALIF TB117, DOC-FF 3/71, FTMS 191-5903, CPAI 84
Power	220 /110 V 50/60 Hz
Weight	65 Kg
Dimensions	570 x 380 x 850 mm (L x W x H)
