0-5 Kg Longitudinal Force 1-999,999times Adjustable Counter Zipper Tester

Name: 05 Kg Longitudinal Force 1999999times Adjustable Counter Zipper Tester
Brand: TESTEX
Price: 1 USD

Brand Name : TESTEX

Model Number : TF150

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C,D/A,T/T,Western Union,MoneyGram, In Cash

Supply Ability : 300 Set/Sets per Month

Delivery Time : 30 days

Packaging Details : Standard exporting wooden case

Speed : 30/min

Weight : 80 kg

Power : 220/110 V 50/60 Hz 4 A

Dimensions : 480 x 350 x 950 mm (L x W x H)

Contact Now

0-5 Kg Longitudinal Force 1-999,999times Adjustable Counter Zipper Tester

Application

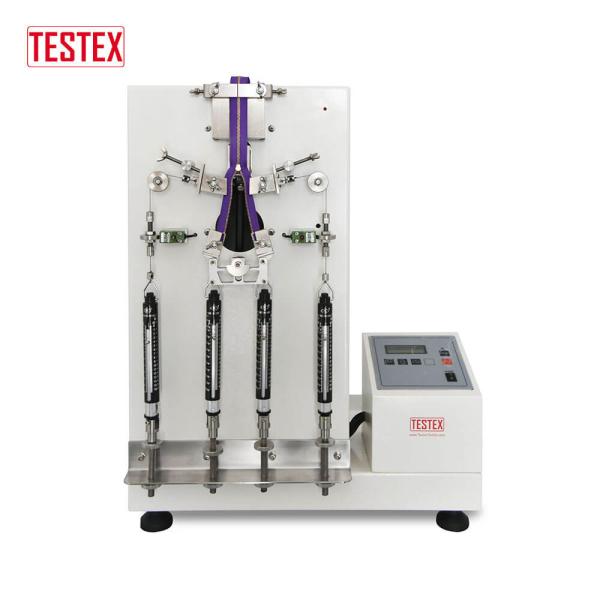

Zipper Reciprocation Tester is used to calculate how much resistance a zipper (slide fastener) has towards reciprocation. This is tested by putting the specimen through some cyclic operations while applying both longitudinal and lateral tension.

The machine then makes the head of the zipper to go through reciprocating movement at a constant speed of 30 times per minute. The operator then sets a pre-selected count using an integral counter so that the drive can be stopped when the count is reached.

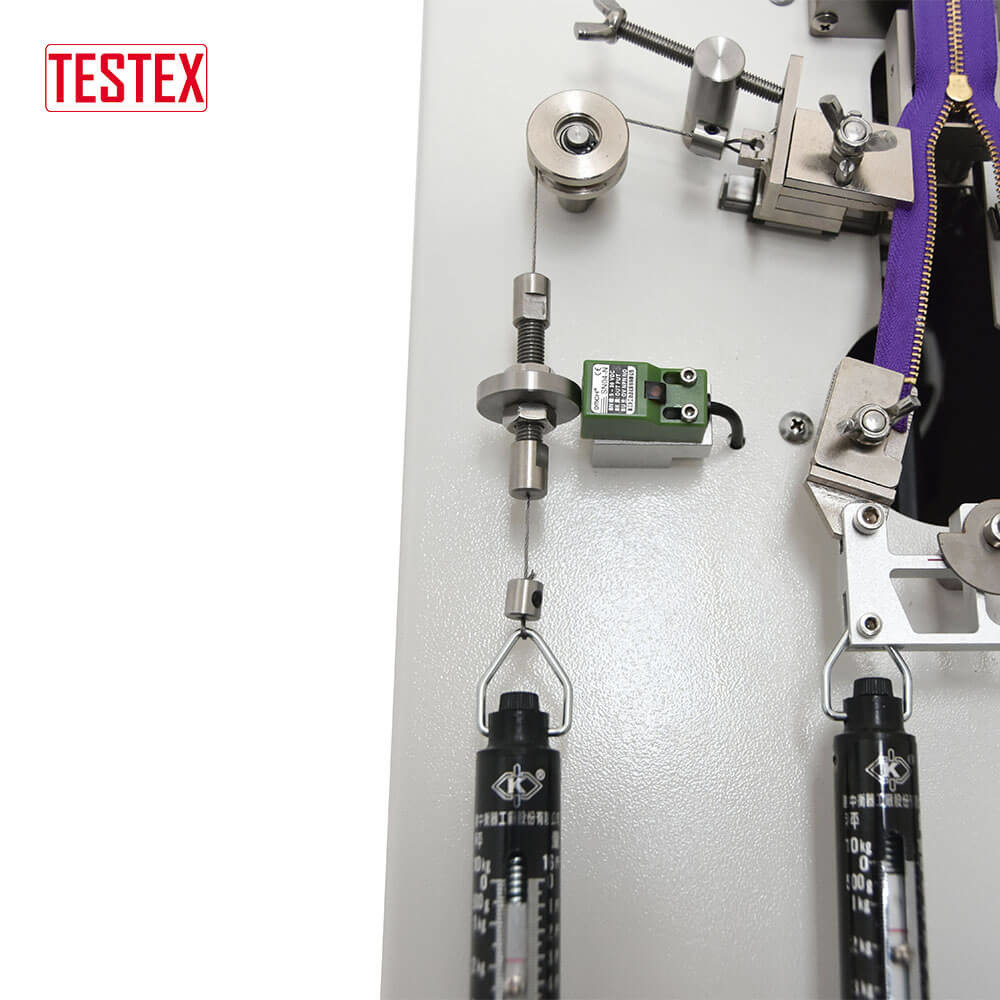

It comes with a sensor that stops the machine automatically before the zipper breaks. The machine can also have an adjustable stroke of 40 ~ 100mm if requested.

Specifications

Speed	30/min
Lateral force	0-10 Kg
Longitudinal force	0-5 Kg
Counter	1-999,999times,adjustable
Standards	BS 3084 CNS -1083 QB/T 2171-1995
Power	220 / 110 V 50 / 60 Hz 4A
Weight	80 kg
Dimensions	480 x 350 x 950 mm (L x W x H)
